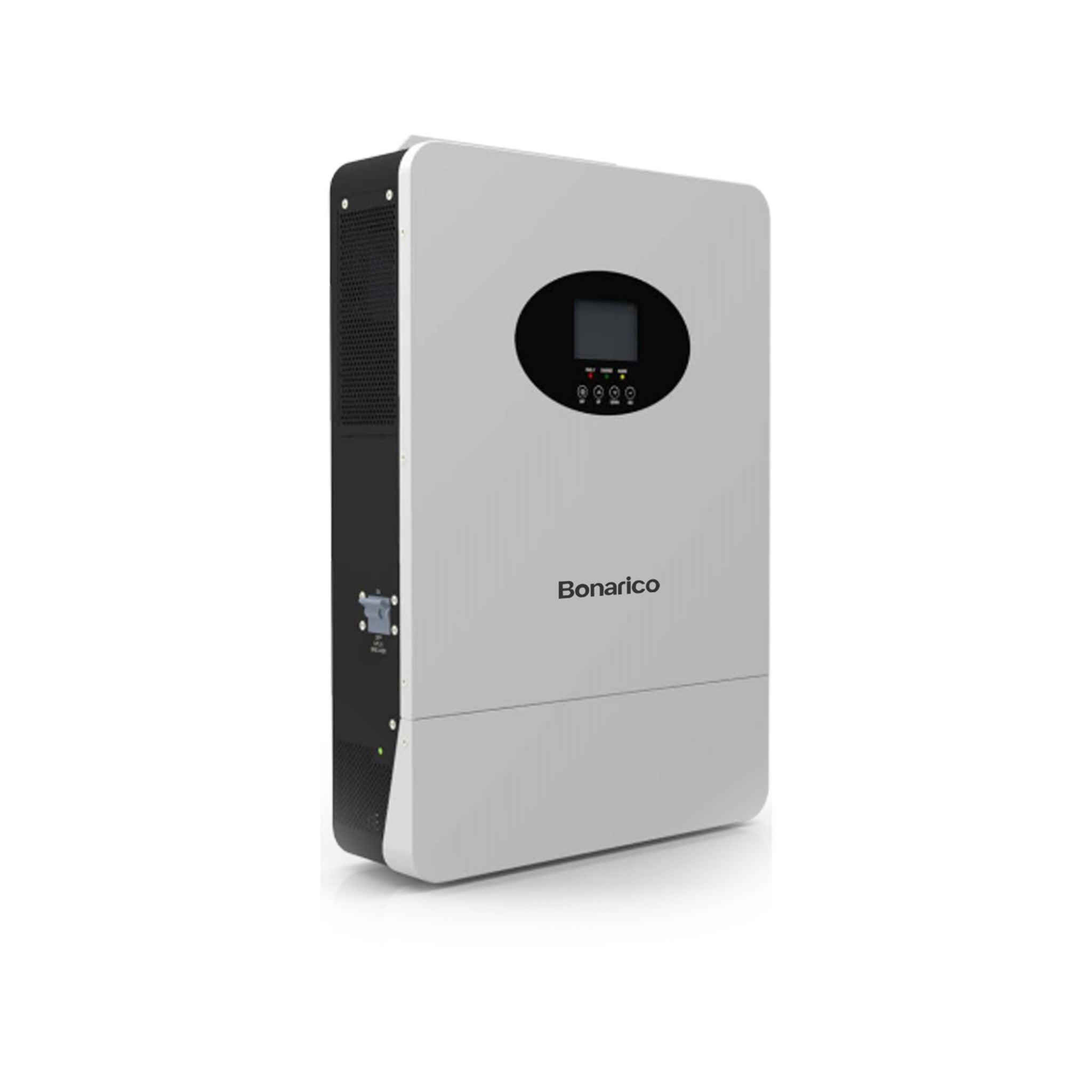

12kW Solar Storage Inverter EU

12kW Solar Storage Inverter EU

Vendor: Bonarico
SKU: BR-EST12KL-EU
  • High-performance dual digital signal DSP control
  • Dual independent MPPT inputs, 2x PV input power
  • Time-of-use charging and discharging
  • PV input with ISO array insulation resistance detection
  • AC output with GFCI (Ground Fault Circuit Interrupter) current detection
  • Support 6 machines in parallel
  • If the photovoltaic power is insuffi cient, the photovoltaic can be combined with the power grid and battery to supply the load
  • Capable of handling unbalanced loads
  • Multiple lithium battery activation functions
  • Equipped with 485/CAN communication interfaces
Subtotal: $900.00
$900.00
$900.00
(-0%)
12kW Solar Storage Inverter EU

12kW Solar Storage Inverter EU

$900.00
12kW Solar Storage Inverter EU

12kW Solar Storage Inverter EU

$900.00

    Technical parameter

    Battery Voltage 48VDC
    Hybrid Charging Maximum Charging Current 260A
    Battery Type Lithium/Lead-acid

    Maximum PV Input Power 2*9000W
    MPPT Range @ Operating Voltage 200VDC - 650VDC
    Maximum PV Input Current 2*22A
    Number of Independent MPP Trackers/Strings Per MPP Tracker 2/2
    Maximum PV Open-circuit Voltage 800VDC
    Maximum Solar Charge Current 260A

    Rated Power 12000VA/12000W
    Parallel Capability Yes，6 units maximum
    AC Voltage Regulation 230/400VAC 3P ± 5% @ 50/60Hz
    Surge Power 24000VA
    Efficiency (Peak) 93%
    Waveform Pure sine wave
    Transfer Time 10ms typical, 20ms Max

    Charge Current 120A
    AC Input Voltage 230/400 VAC 3P
    Selectable Voltage Range "170-280 VAC (L/N);
    305-485 VAC (L1/L2/L3)"
    Frequency Range 50Hz/60Hz (Auto sensing)

    Protection Degree IP21
    Dimension (L/W/D) 639(L)x445(W)x131.6(D)mm
    Packaging Dimension (L/W/D) 802(L)x567(W)x240(D)mm
    Net Weight 26KG

    Certificate IEC62109-1/2, EN61000-6-1/3
    Humidity 5% to 95% Relative Humidity (Non-condensing)
    EMC Certification Level (EMC) class B
    Altitude <2000m
    Operating Temperature -10°C - 55°C
    Storage Temperature -15°C - 60°C
    Datasheet Download
