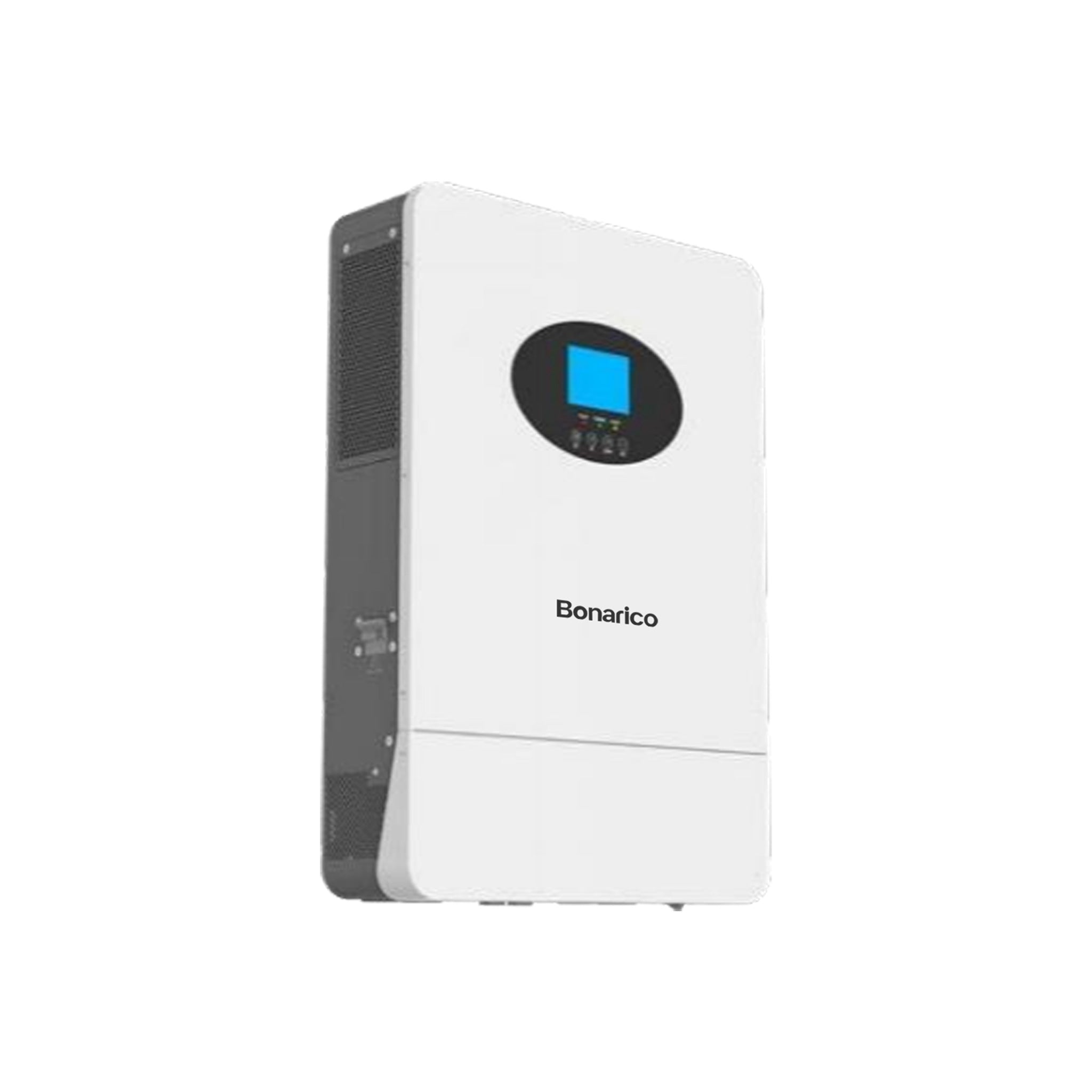

10kW Solar Storage Inverter US

10kW Solar Storage Inverter US

Vendor: Bonarico
SKU: BR-ESS10KL-US
  • Load power up to 10 kilowatts
  • High precision MPPT controller
  • The battery has a balanced charging mode
  • Battery can use PV maximum to input voltage 500Vdc or not use
  • 6 time periods for battery charging/discharging
  • Monitoring system WIFI/GPRS option
  • Support 6 machines in parallel, constitute three-phase four-wire power generation system.
  • If the photovoltaic power is insufficient, the photovoltaic can be combined with the power grid and battery to supply the load
  • Economic model can be used to charge and discharge the inverter
    Max. charging/discharging current of 200A
Subtotal: $995.56
$995.56
$995.56
(-0%)
10kW Solar Storage Inverter US

10kW Solar Storage Inverter US

$995.56
10kW Solar Storage Inverter US

10kW Solar Storage Inverter US

$995.56

    Technical parameter

    Battery Voltage 48VDC
    Hybrid Charging Maximum Charging Current 200A
    Battery Type Lithium/Lead-acid

    Maximum PV Input Power 2*5500W
    MPPT Range @ Operating Voltage 120VDC - 450VDC
    Maximum PV Input Current 2*22A
    Number of Independent MPP Trackers/Strings Per MPP Tracker 2/2
    Maximum PV Open-circuit Voltage 500VDC
    Maximum Solar Charge Current 200A

    Rated Power 10000VA/10000W
    Parallel Capability Yes，6 units maximum
    AC Voltage Regulation 120/240VAC ± 5% @ 50/60Hz
    Surge Power 20000VA
    Efficiency (Peak) 93%
    Waveform Pure sine wave
    Transfer Time 10ms typical, 20ms Max

    Charge Current 120/208A
    AC Input Voltage 120/240 VAC
    Selectable Voltage Range "90-140 VAC (For Personal Computers);
    156-242 VAC(For Home Appliances)"
    Frequency Range 50Hz/60Hz (Auto sensing)

    Protection Degree IP21
    Dimension (L/W/D) 639(L)x445(W)x131.6(D)mm
    Packaging Dimension (L/W/D) 802(L)x567(W)x240(D)mm
    Net Weight 24.4KG

    Certificate UL1741/FCC
    Humidity 5% to 95% Relative Humidity (Non-condensing)
    EMC Certification Level (EMC) FCC
    Altitude <2000m
    Operating Temperature -10°C - 55°C
    Storage Temperature -15°C - 60°C
    Datasheet Download
