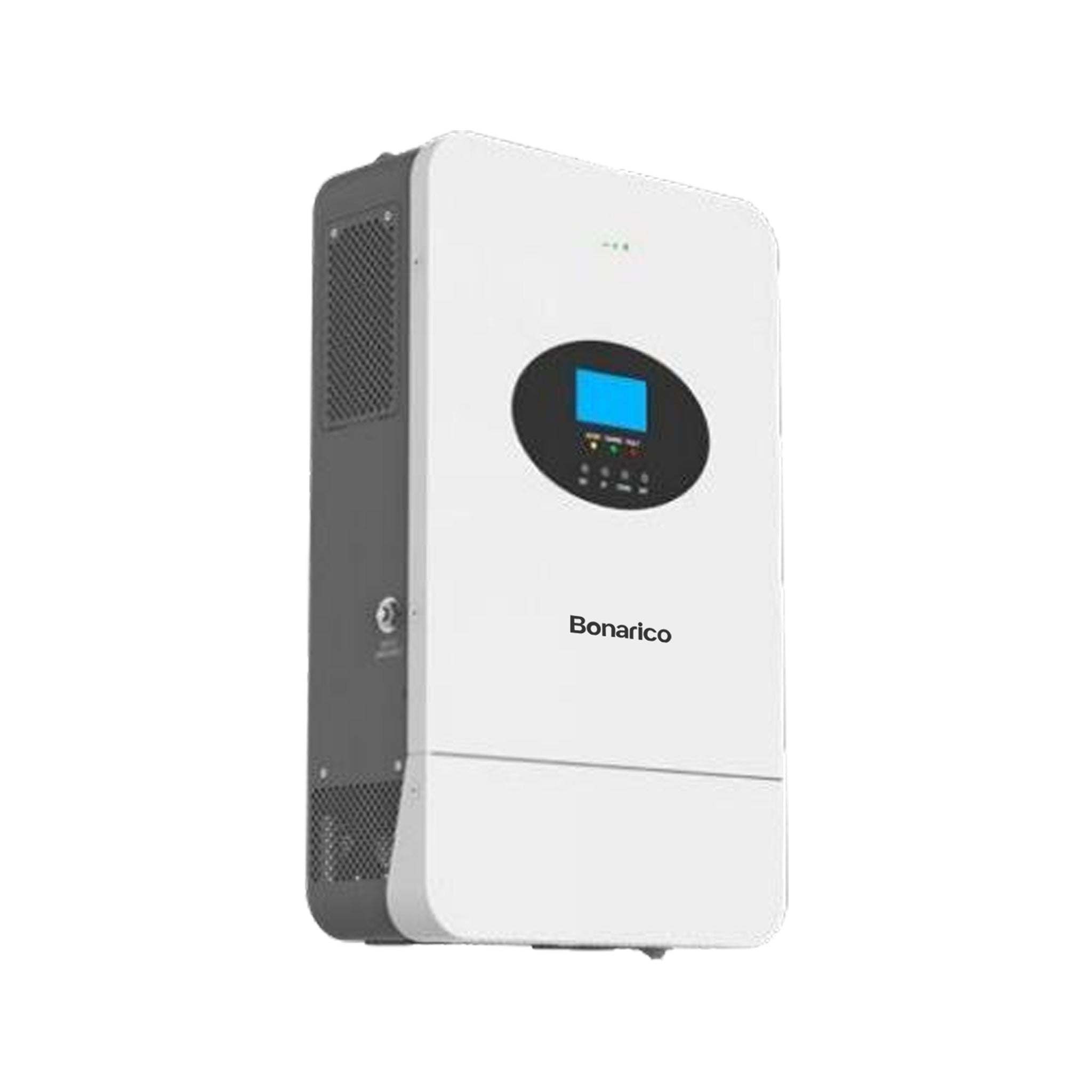

3kW Solar Storage Inverter US

3kW Solar Storage Inverter US

Vendor: Bonarico
SKU: BR-ESS3K0L-US
  • Adopt DSP full digital control mode
  • If the photovoltaic power is insufficient, the photovoltaic can be combined with the power grid and battery to supply the load
  • High precision MPPT controller
  • The battery has a balanced charging mode
  • Battery can use PV maximum to input voltage 500Vdc or not use
  • Both are configured the grid and PV prioritize
  • Monitoring system WIFI/GPRS option
  • Economic model can be used to charge and discharge the inverter
  • Power grid and oil machine can be freely selected
Subtotal: $309.04
$309.04
$326.21
$309.04
(-5%)
3kW Solar Storage Inverter US

3kW Solar Storage Inverter US

$326.21 $309.04
3kW Solar Storage Inverter US

3kW Solar Storage Inverter US

$326.21 $309.04

    Technical parameter

    Battery Voltage 24VDC
    Hybrid Charging Maximum Charging Current 80A
    Battery Type Lithium/Lead-acid

    Maximum PV Input Power 4000W
    MPPT Range @ Operating Voltage 120VDC - 450VDC
    Maximum PV Input Current 13A
    Number of Independent MPP Trackers/Strings Per MPP Tracker 1/1
    Maximum PV Open-circuit Voltage 500VDC
    Maximum Solar Charge Current 80A

    Rated Power 3000W
    Parallel Capability NO
    AC Voltage Regulation 120VAC ± 5% @ 50/60Hz
    Surge Power 6000VA
    Efficiency (Peak) 93%
    Waveform Pure sine wave
    Transfer Time 10ms typical, 20ms Max

    Charge Current 60A
    AC Input Voltage 120 VAC
    Selectable Voltage Range "95-140 VAC (For Personal Computers);
    65-140 VAC (For Home Appliances)"
    Frequency Range 50Hz/60Hz (Auto sensing)

    Protection Degree IP21
    Dimension (L/W/D) 456.6(L)x281.5(W)x108.8(D)mm
    Packaging Dimension (L/W/D) 590(L)x365(W)x200(D)mm
    Net Weight 8.8KG

    Certificate UL1741/FCC
    Humidity 5% to 95% Relative Humidity (Non-condensing)
    EMC Certification Level (EMC) FCC
    Altitude <2000m
    Operating Temperature -10°C - 55°C
    Storage Temperature -15°C - 60°C
    Datasheet Download
