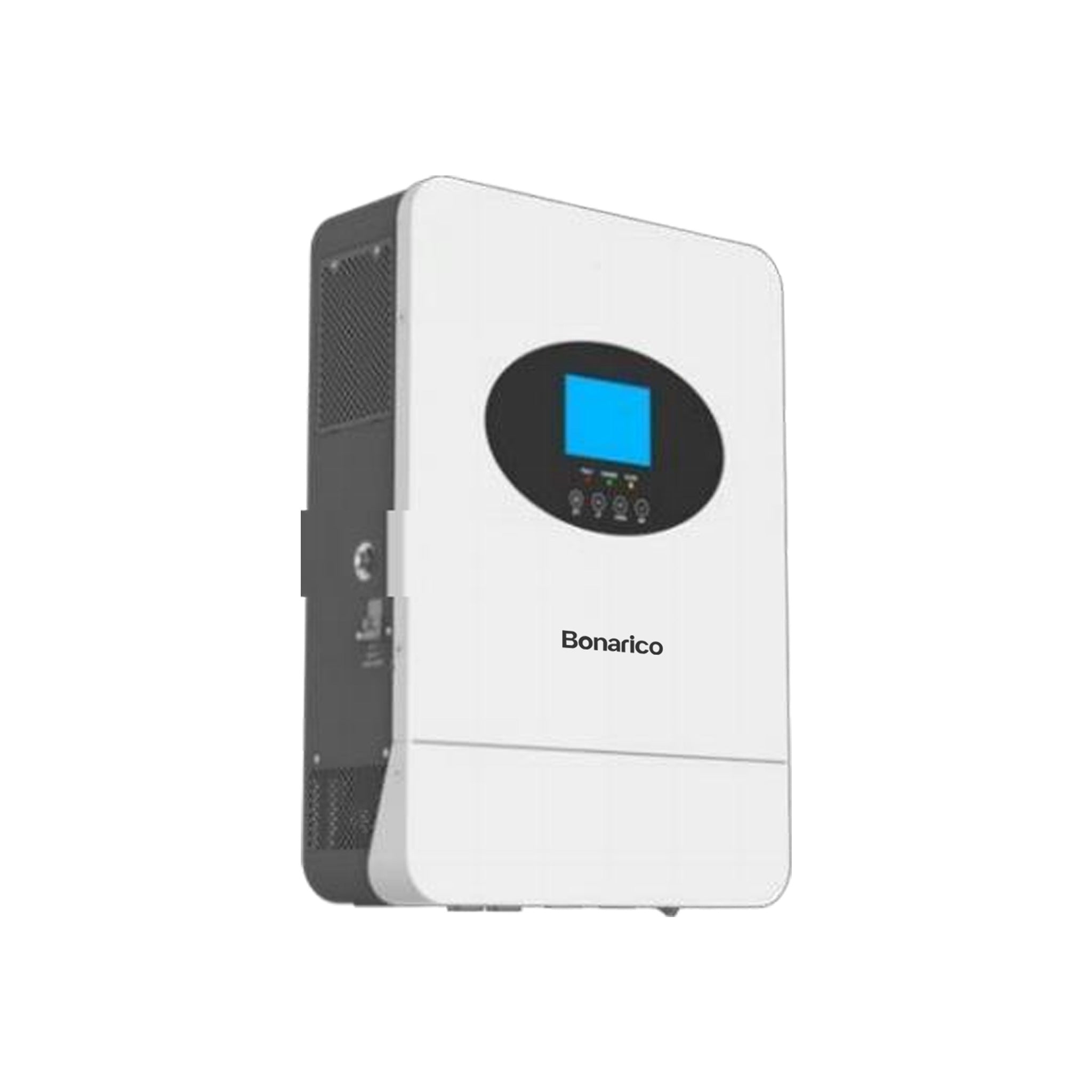

5.6kW Hybrid Solar Storage Inverter EU Pro

5.6kW Hybrid Solar Storage Inverter EU Pro

Vendor: Bonarico
SKU: BR-ESS5K6L Pro
  • Adopt DSP full digital control mode
  • Support 6 machines in parallel, constitute three-phase four-wire power generation system
  • High precision MPPT controller
  • The  battery  has  a  balanced  charging  mode
  • If the photovoltaic power is insuffi cient, the photovoltaic can be combined with the
  • power grid and battery to supply the load
  • Battery can use PV maximum to input voltage 500Vdc or not use
  • Both are configured the grid and PV prioritize
  • Economic model can be used to charge and discharge the inverter
  • Monitoring system WIFI/GPRS option
  • Power  grid  and  oil  machine  can  be  freely  selected
  • Anti-backflow grid connection function  photovoltaic and mains power hybrid power supply, supporting use without batteries
  • Multiple charging and discharging modes
  • With multiple protection functions, 360 ° all-round protection
  • Adopt an intelligent adjustable-speed fan for efficient heatdissipation and prolong the service life of the system
Subtotal: $329.93
$329.93
$329.93
(-0%)
5.6kW Hybrid Solar Storage Inverter EU Pro

5.6kW Hybrid Solar Storage Inverter EU Pro

$329.93
5.6kW Hybrid Solar Storage Inverter EU Pro

5.6kW Hybrid Solar Storage Inverter EU Pro

$329.93

    Technical parameter

    Battery Voltage 48VDC
    Hybrid Charging Maximum Charging Current 100A
    Battery Type Lithium/Lead-acid

    Maximum PV Input Power 5500W
    MPPT Range @ Operating Voltage 120VDC - 450VDC
    Maximum PV Input Current 22A
    Number of Independent MPP Trackers/Strings Per MPP Tracker 1/1
    Maximum PV Open-circuit Voltage 500VDC
    Maximum Solar Charge Current 100A

    Protection Degree IP21
    Dimension (L/W/D) 480(L)x331(W)x120(D)mm
    Packaging Dimension (L/W/D) 612(L)x424(W)x208(D)mm
    Net Weight 12KG

    Certificate IEC62109-1/2, EN61000-6-1/3
    Humidity 5% to 95% Relative Humidity (Non-condensing)
    EMC Certification Level (EMC) class B
    Altitude <2000m
    Operating Temperature -10°C - 55°C
    Storage Temperature -15°C - 60°C

    Rated Outpput Power and AC Output Power 5600VA/5600W
    Parallel Capability（off grid） Yes，6 units maximum
    Rated AC Voltage（V） 230VAC ± 5% @ 50/60Hz
    Peak Power（off grid） 11000VA，Turn off output after 5 seconds
    Efficiency (Peak) 93%
    Waveform Pure sine wave
    Transfer Time 20ms Max

    Charge Current 100A
    AC Input Voltage 230 VAC
    Selectable Voltage Range "170-280 VAC (For Personal Computers);
    90-280 VAC (For Home Appliances)"
    Frequency Range 50Hz/60Hz (Auto sensing)
    Datasheet Download
