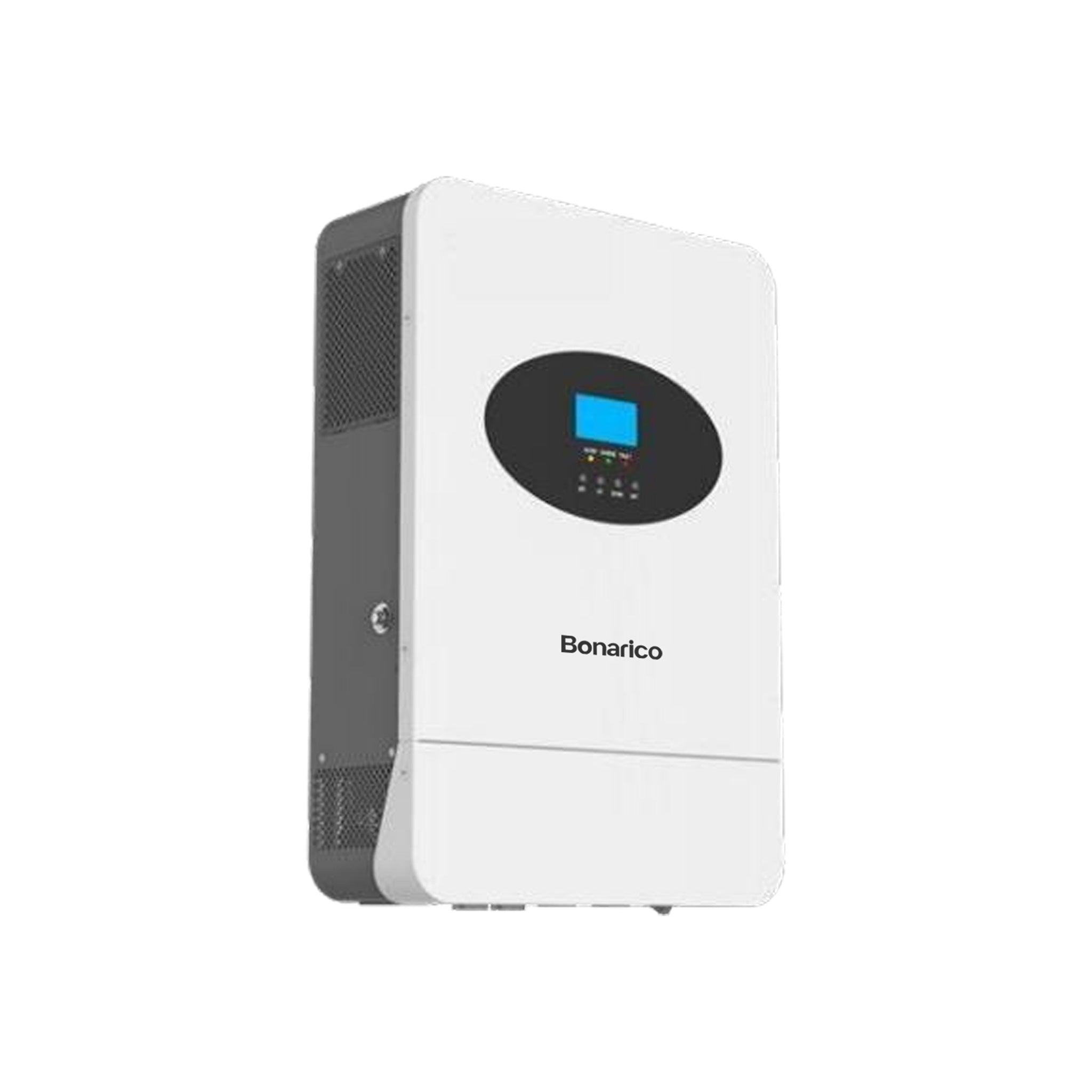

5kW Solar Storage Inverter US

5kW Solar Storage Inverter US

Vendor: Bonarico
SKU: BR-ESS5KOL-US
  • Support multiple battery protocols
  • Support 6 machines in parallel, constitute three-phase four-wire power generation system
  • High precision MPPT controller
  • The battery has a balanced charging mode
  • If the photovoltaic power is insufficient, the photovoltaic can be combined with the power grid and battery to supply the load
  • Battery can use PV maximum to input voltage 500Vdc or not use
  • lt has a power-saving mode function to reduce no-load loss
  • Economic model can be used to charge and discharge the inverter
  • Monitoring system WIFI/GPRS option
  • Adopt an intelligent adjustable-speed fan for efficient heatdissipation and prolong the service life of the system
Subtotal: $497.78
$497.78
$497.78
(-0%)
5kW Solar Storage Inverter US

5kW Solar Storage Inverter US

$497.78
5kW Solar Storage Inverter US

5kW Solar Storage Inverter US

$497.78

    Technical parameter

    Battery Voltage 48VDC
    Hybrid Charging Maximum Charging Current 100A
    Battery Type Lithium/Lead-acid

    Maximum PV Input Power 5500W
    MPPT Range @ Operating Voltage 120VDC - 450VDC
    Maximum PV Input Current 22A
    Number of Independent MPP Trackers/Strings Per MPP Tracker 1/2
    Maximum PV Open-circuit Voltage 500VDC
    Maximum Solar Charge Current 100A

    Rated Power 5000VA/5000W
    Parallel Capability Yes，6 units maximum
    AC Voltage Regulation 120VAC ± 5% @ 50/60Hz
    Surge Power 10000VA
    Efficiency (Peak) 93%
    Waveform Pure sine wave
    Transfer Time 10ms typical, 20ms Max

    Charge Current 60A
    AC Input Voltage 120 VAC
    Selectable Voltage Range "95-140 VAC (For Personal Computers);
    65-140 VAC (For Home Appliances)"
    Frequency Range 50Hz/60Hz (Auto sensing)

    Protection Degree IP21
    Dimension (L/W/D) 480(L)x340.9(W)x120(D)mm
    Packaging Dimension (L/W/D) 612(L)x424(W)x208(D)mm
    Net Weight 12KG

    Certificate UL1741/FCC
    Humidity 5% to 95% Relative Humidity (Non-condensing)
    EMC Certification Level (EMC) FCC
    Altitude <2000m
    Operating Temperature -10°C - 55°C
    Storage Temperature -15°C - 60°C
    Datasheet Download
