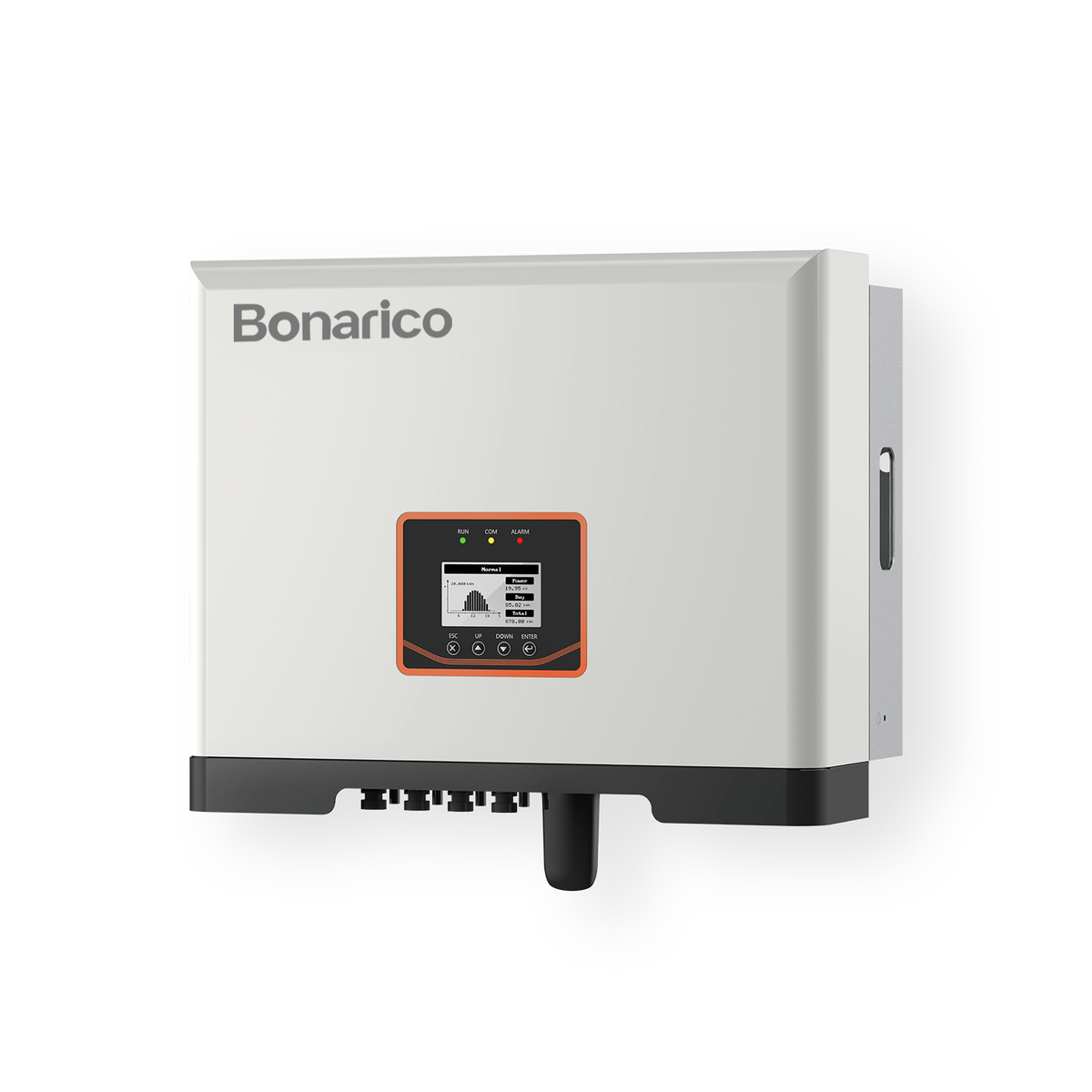

BR-3GT-12K0

BR-3GT-12K0

Vendor: Bonarico
SKU: BR-3GT-12K0

Product Features

  • Max. efficiency up to 98.5%, smart MPPT algorithm with tracking efficiency as high as 99.99%
  • Supports multi-unit parallel connection for strong scalability
  • Wide MPPT voltage range: 200V–900V

Safety & Reliability

  • IP65 protection degree, multiple protection functions, natural cooling for longer service life
  • Lightweight design for easy installation
  • Supports remote monitoring via PC and mobile devices
  • Advanced cooling solution enables full-load operation at 45°C
Subtotal: $568.17
$568.17
$568.17
(-0%)
BR-3GT-12K0

BR-3GT-12K0

$568.17
BR-3GT-12K0

BR-3GT-12K0

$568.17

    Technical parameter

    Maximum Allowable Input Strings Power 15600W
    Nominal DC Power[W] 12350W
    Maximum Input Voltage[V] 1000V
    Start Voltage[V] 180V
    Operating Voltage Range[V] 200~900V
    Input Number of Strings(pcs) 1/1
    Maximum input Current[A] 12/12A
    Maximum DC Short-circult Current[A] 15/15A

    Nominal Output Power[W] 12000W
    Max. Output Power[W] 12000VA
    Nominal Grid Voltage [Vac] 400V
    Type of Power Gric 3L/N/PE
    Frequency 50/60
    Total Harmonic of Output Current ＜1.5%
    DC Component ＜0.5%*In
    Power Factor/Range ＞0.99/(0.8 lead to 0.8 lag can be set)

    Dimension(W*D*H)[mm] 505*414*200
    Weight[kg] 16
    Degree of Protection IP65

    Cooling Method Natural convention
    Installation Method Wall-mounted
    Topology Transtormerless isolation
    Night Consumption[W] ＜0.5
    Working Temperature[℃] -25~60（ >45 derating )
    Relative Humidity[%] 0~95
    Altitude(m) ＜3500，＞2000 derating
    Display Mode LCD
    Communication RS485/WIFI
    Connection Type Plug in connector
    Safety Standards IEC62109-1/-2
    EMC Standards EN61000-6-1/-2/-3,IEC61000-2-2
    On-grid Standard AS/NZS 4777.2，NRS 097-2-1:2017，NBT 32004-2018
